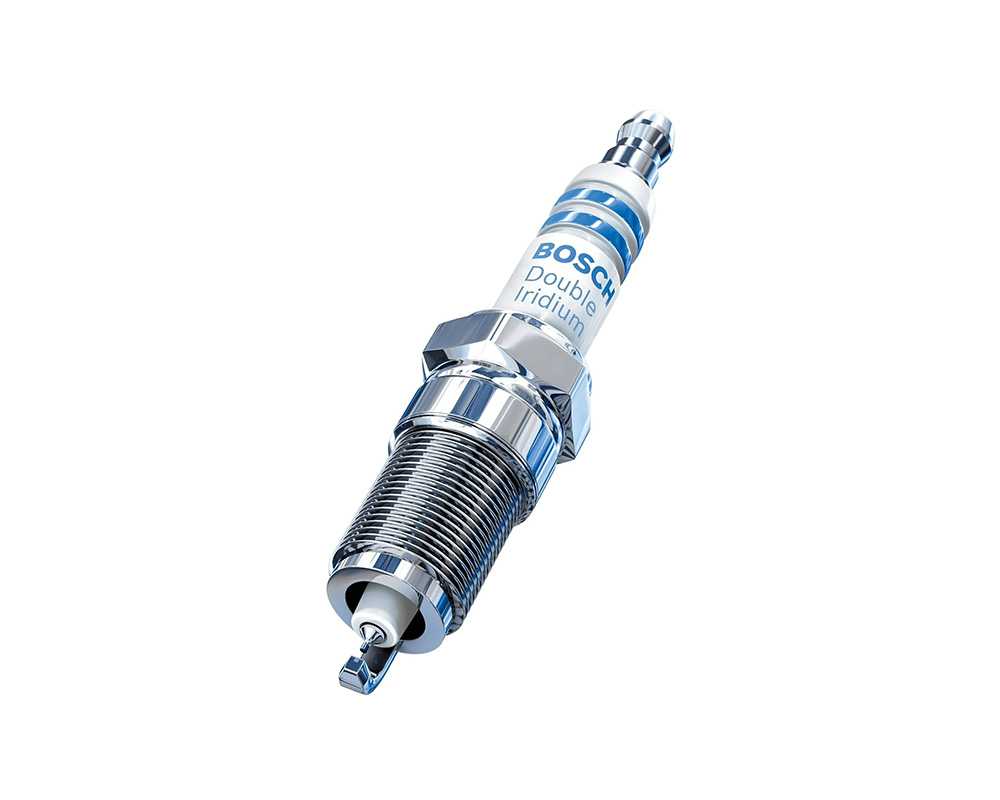

Spark Plugs - 9609
Product Description
Detailed Applications
Product Specifications
OE Numbers
Documents & Support
Product Description
360-degree laser welded ultra-fine wire iridium firing pin provides better ignitability - reducing voltage requirements up to 24% - and enhanced durability
Nickel-plated rolled threads provide superior resistance to corrosion and do not require anti-seize - making installation quick and easy
Detailed Applications
Make
Model
Year
HYUNDAI
Santa Fe
2007-2009
INFINITI
FX35
2003-2008
INFINITI
FX45
2003-2008
INFINITI
G35
2003-2007
INFINITI
I35
2002-2004
INFINITI
M35
2006-2008
Product Specifications
Center Electrode Core Material
Nickel-Yttrium and Copper
Center Electrode Tip Material
Iridium
Gap Size
1.1mm
Ground Configuration
Standard
Ground Electrode Core Material
N/A
Ground Electrode Quantity
1
Ground Electrode Tip Design
Tapered
Ground Electrode Tip Material
Platinum-Iridium and Nickel-Yttrium
Hex Size
16
Insulator Material
Ceramic
Insulator Type
Non-Projected
Manufacturer Heat Range
8
Outdoor Power Equipment Application
No
Reach
26.5mm
Resistance
6000 82
Resistor
Yes
Seat Type
Flat
Short Style
No
Spark Plug Type
4-Cycle
OE Numbers
9609
