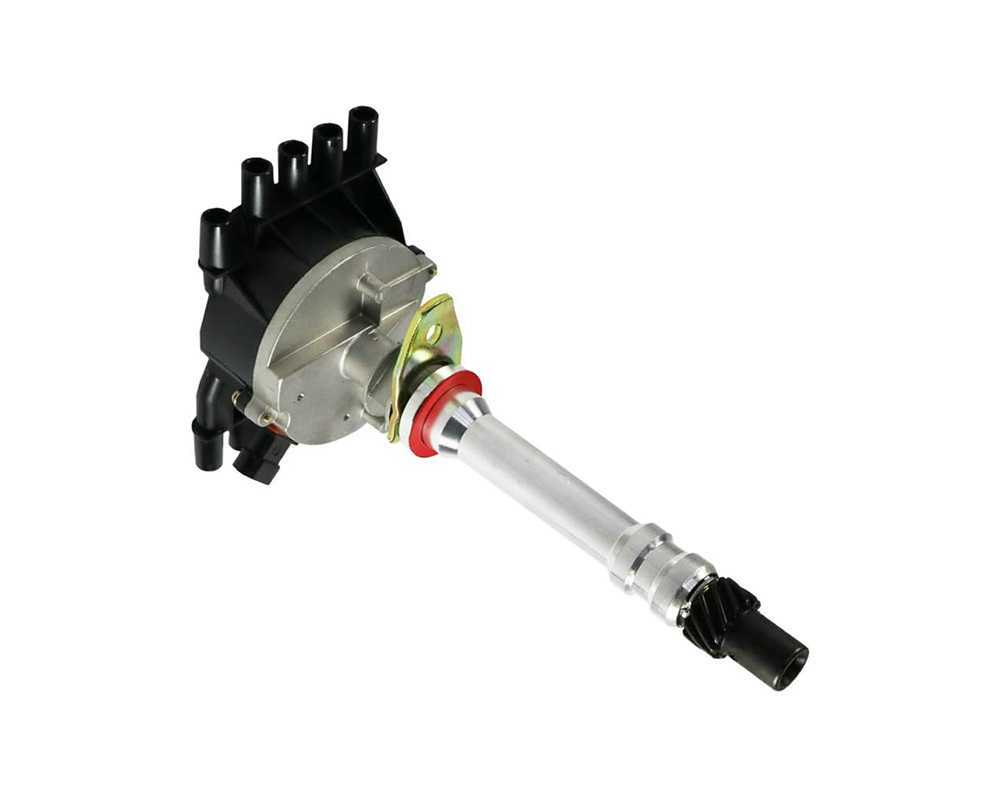

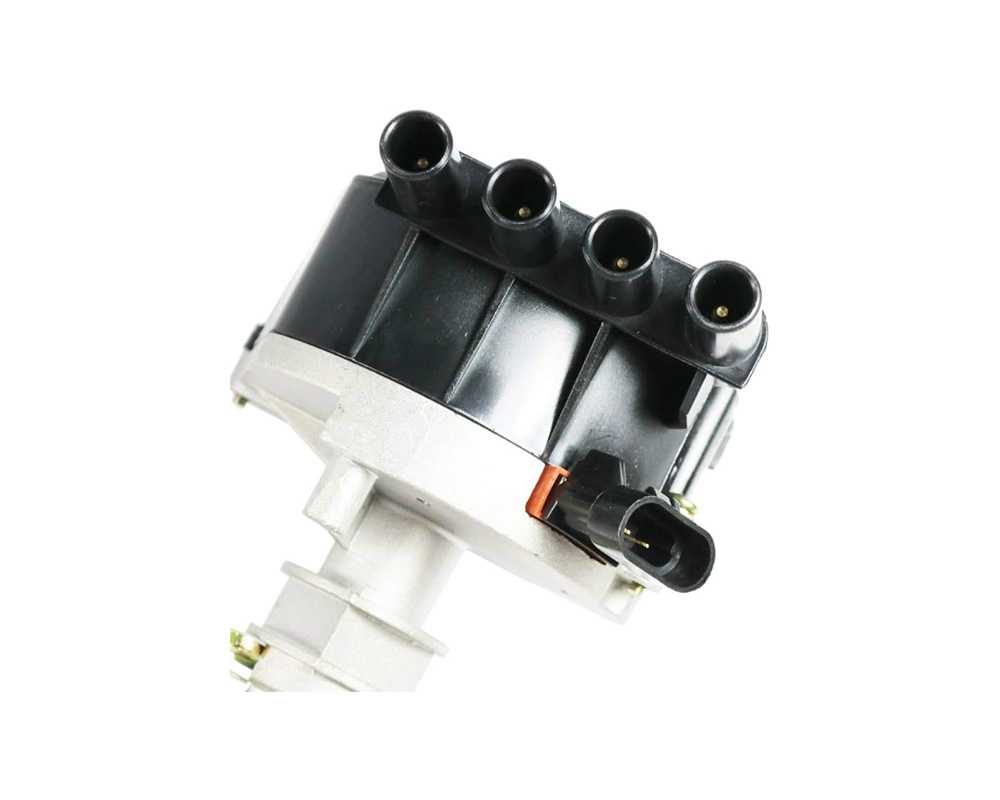

Ignition Distributor - 93441558
Product Description
Detailed Applications
Product Specifications
OE Numbers
Documents & Support
Product Description
【High Quality】This Ignition Distributor is Heavy duty constructed, high grade hardened steel gears which is durable, anti-corrision and provides long time service life.
【Functiong】The ignition distributor transfers the high voltage from the ignition coil to the correct cylinder by using the timing of the rotor to ignite each spark plug. The ignition distributor cap houses and protects this rotor and connections.
Detailed Applications
Make
Model
Year
CADILLAC
ESCALADE
1999-2000
CHEVROLET
C1500 PICKUP
1996-1999
CHEVROLET
C1500 SUBURBAN
1996-1999
CHEVROLET
C2500 PICKUP
1996-2000
CHEVROLET
C2500 SUBURBAN
1996-1999
CHEVROLET
C3500 PICKUP
1996-2000
CHEVROLET
EXPRESS 1500
1996-2002
CHEVROLET
EXPRESS 2500
1996-2002
CHEVROLET
EXPRESS 3500
1996-2002
CHEVROLET
K1500 PICKUP
1996-1999
CHEVROLET
K1500 SUBURBAN
1996-1999
CHEVROLET
K2500 PICKUP
1996-2000
CHEVROLET
K2500 SUBURBAN
1996-1999
CHEVROLET
K3500 PICKUP
1996-2000
CHEVROLET
P30
1996-1999
CHEVROLET
TAHOE
1996-2000
GMC
C1500 PICKUP
1996-1999
GMC
C1500 SUBURBAN
1996-1999
GMC
C2500 PICKUP
1996-2000
GMC
C2500 SUBURBAN
1996-1999
GMC
C3500 PICKUP
1996-2000
GMC
K1500 PICKUP
1996-1999
GMC
K1500 SUBURBAN
1996-1999
GMC
K2500 PICKUP
1996-2000
GMC
K2500 SUBURBAN
1996-1999
GMC
K3500
1996-2000
GMC
P3500
1996-1999
GMC
SAVANA 1500
1996-2002
GMC
SAVANA 2500
1996-2002
GMC
SAVANA 3500
1996-2002
GMC
YUKON
1996-1999
Product Specifications
Advance Type
computer controlled
Cap Color
Black
Coil Wire Included
No
Color
Black
Distributor Cap Included
Yes
Ignition Box Required
No
Ignition Coil Included
No
Ignition Rotor Included
Yes
Interface Description
3 Pin Sealed Connector, 1 HV tower to Coil, 8 HV Towers to Plugs via Wire Sets
Length (IN)
12.4
Length (MM)
315
Marine Approved
No
Operation Type
HVS
Package Contents
Distributor, Instruction Sheet
Terminal Gender
Male
Terminal Quantity
3
Terminal Type
Blade
OE Numbers
93441558
1104051
1104058
1104079
01104051
01104058
01104079
12570425
