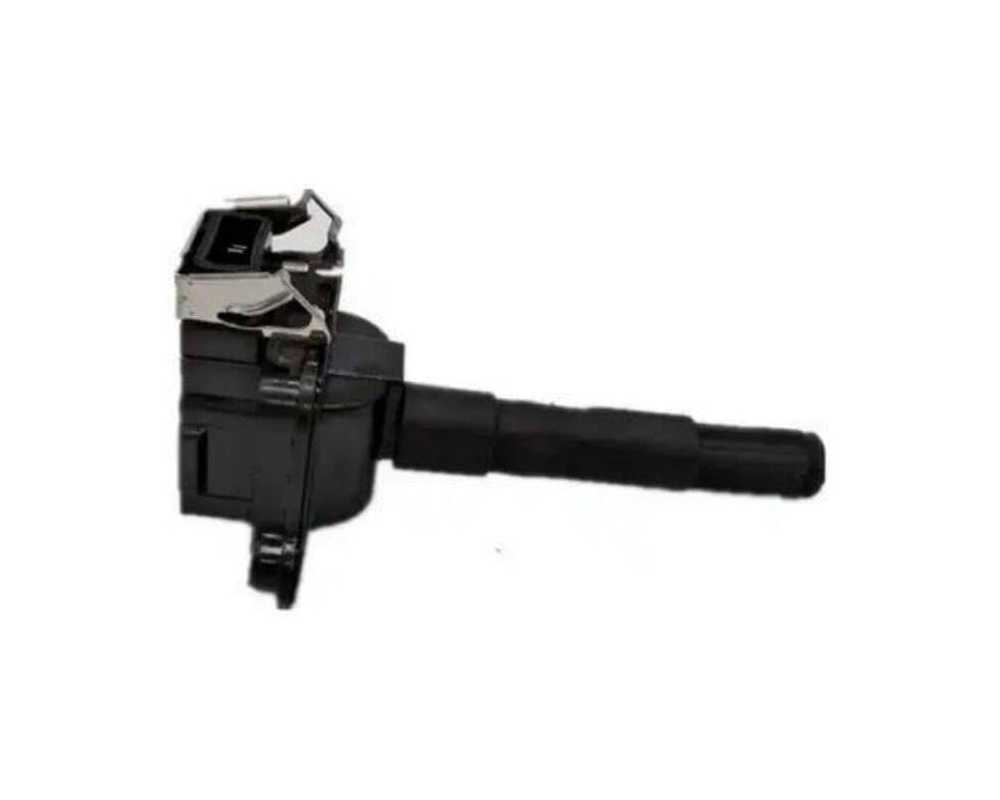

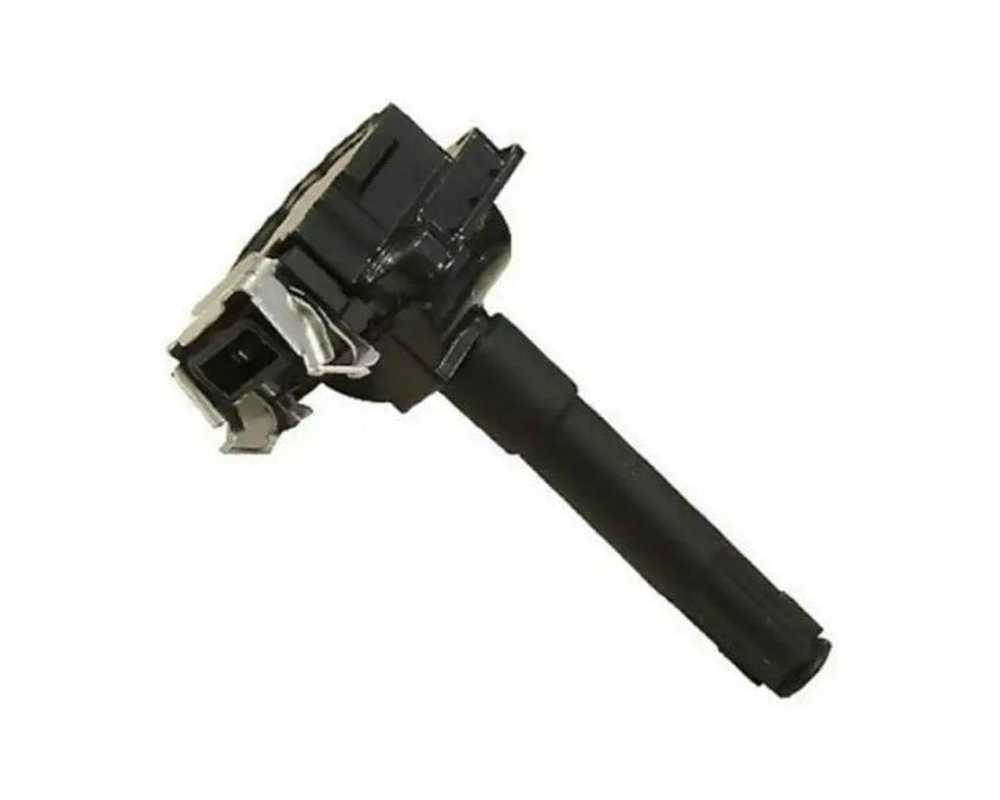

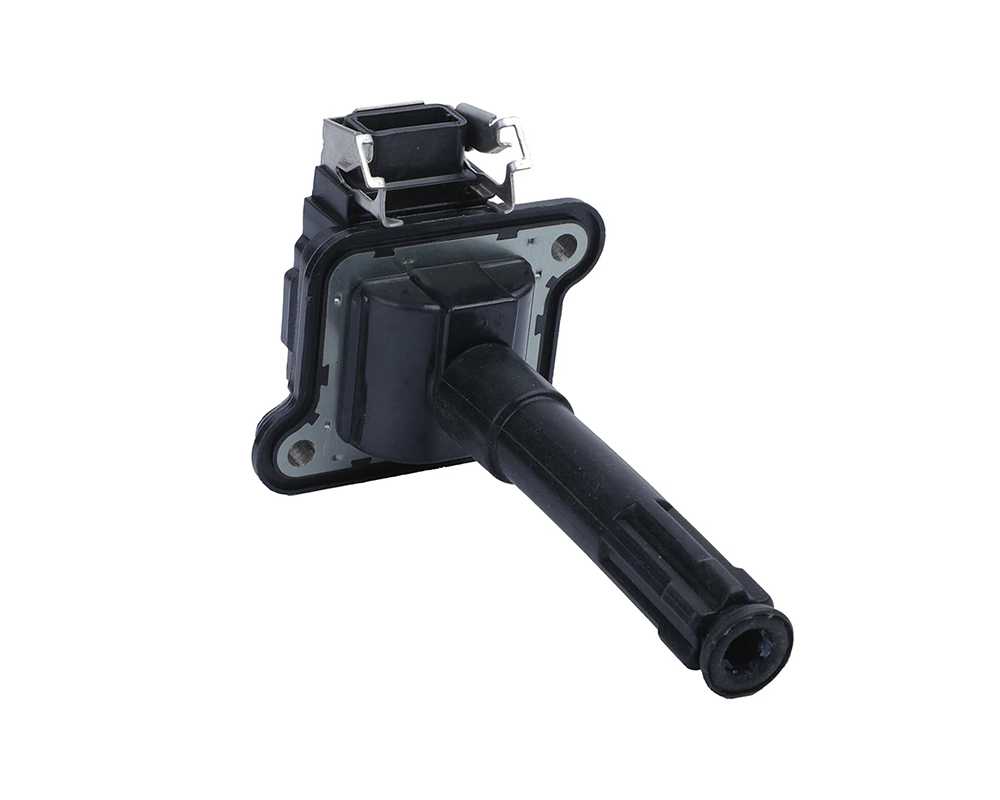

Ignition Coil - 58905105
SQ number : ZR2346A
Product Description
Detailed Applications
Product Specifications
OE Numbers
Documents & Support
Product Description
Designed and endurance tested to resist the common stresses that cause failure.
Efficient coil design that ensures the power in the coil has a streamlined path to the spark plug, reducing occurrence of shorts.
Use of a special winding process controls the length of wire between adjacent windings. That's important because more length results in greater voltage differences, which in turn create more pressure that could break down the insulation and wire coating.
High quality wires, as well as high quality wire coating that resists the cracks, pin holes and imperfections that most often lead to failure issues.
Detailed Applications
Make
Model
Year
AUDI
A4
1997-2000
AUDI
A6
2000-2002
AUDI
A8
1997-1999
AUDI
ALLROAD
2001-2002
AUDI
S4
2000-2002
VOLKSWAGEN
PASSAT
1998-1999
Product Specifications
Coil Type
Coil On Plug Ignition
Coil Wire Included
No
Connector Gender
Female
Ignition Type
Standard
Mount Type
2 Mounting Holes
Mounting Hardware Included
No
Mounting Hole Quantity
2
Oil Filled
No
Package Contents
Ignition Coil, Instruction Sheet
Primary Resistance (82)
0.44
Requires External Resistor
No
Terminal Gender
Male
Terminal Quantity
3
Terminal Type
Blade
Voltage (2H)
12
OE Numbers
58905101
58905105
58905105
986221011
ZS016
UF290
UF369
