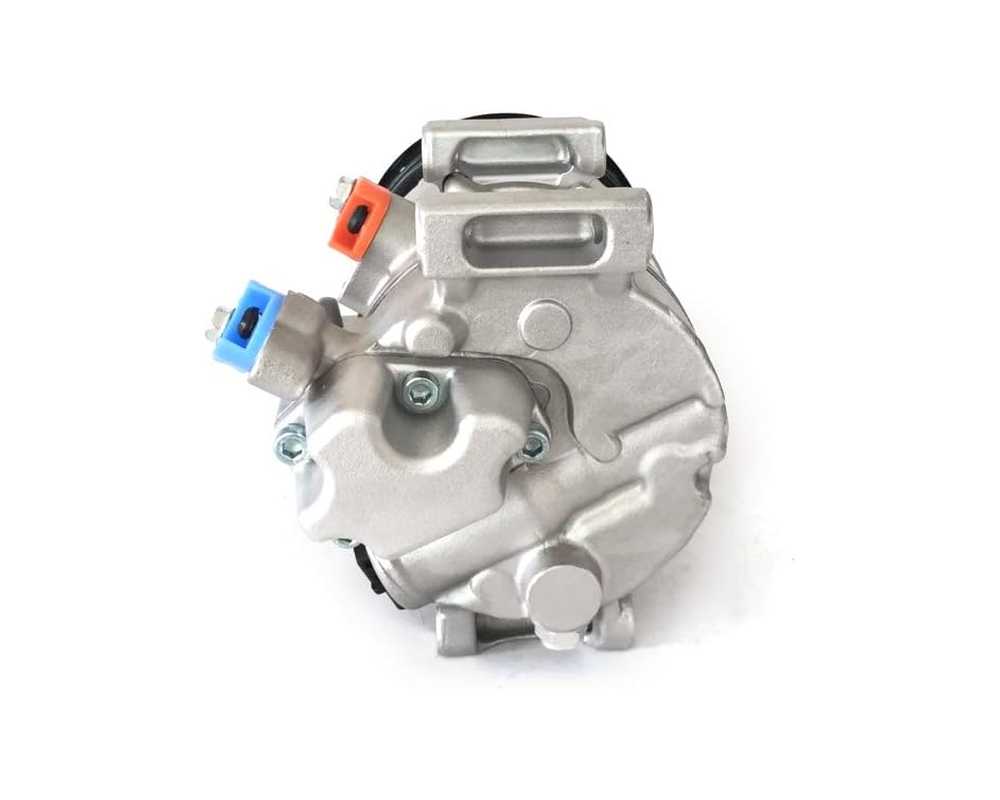

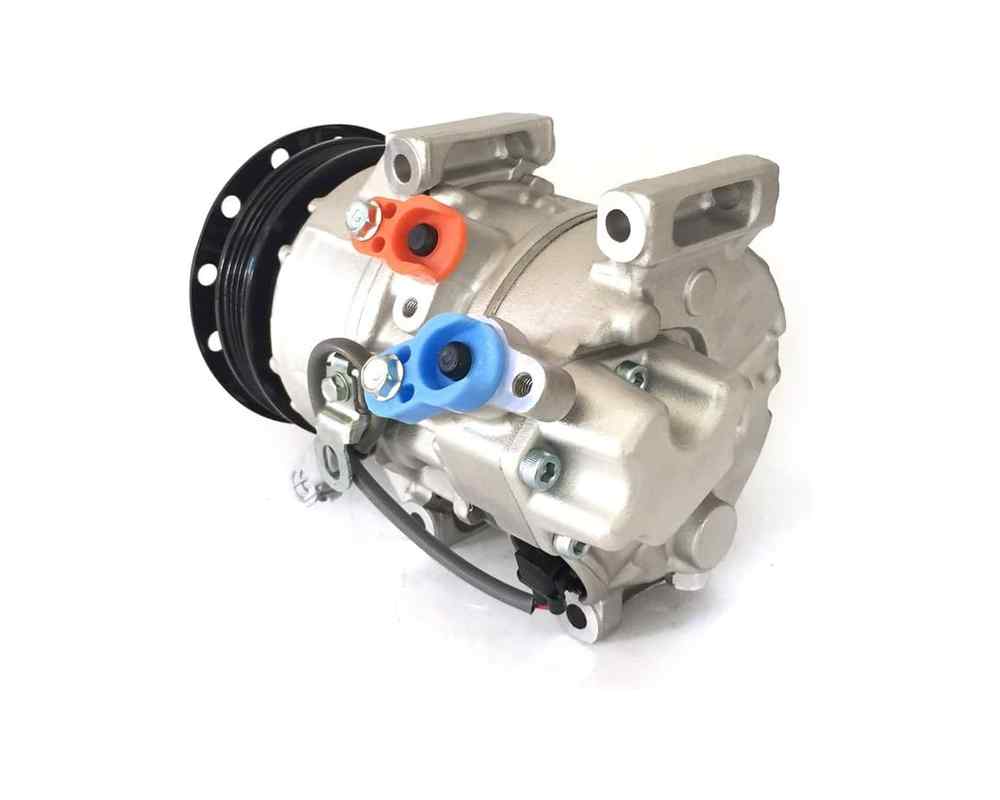

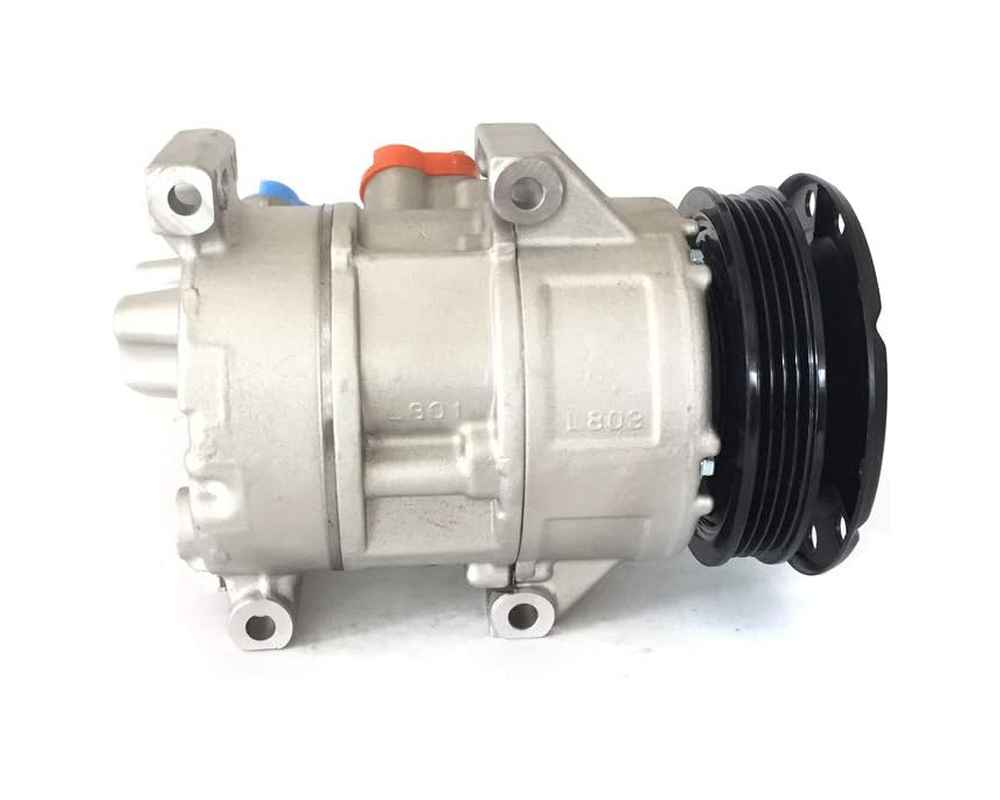

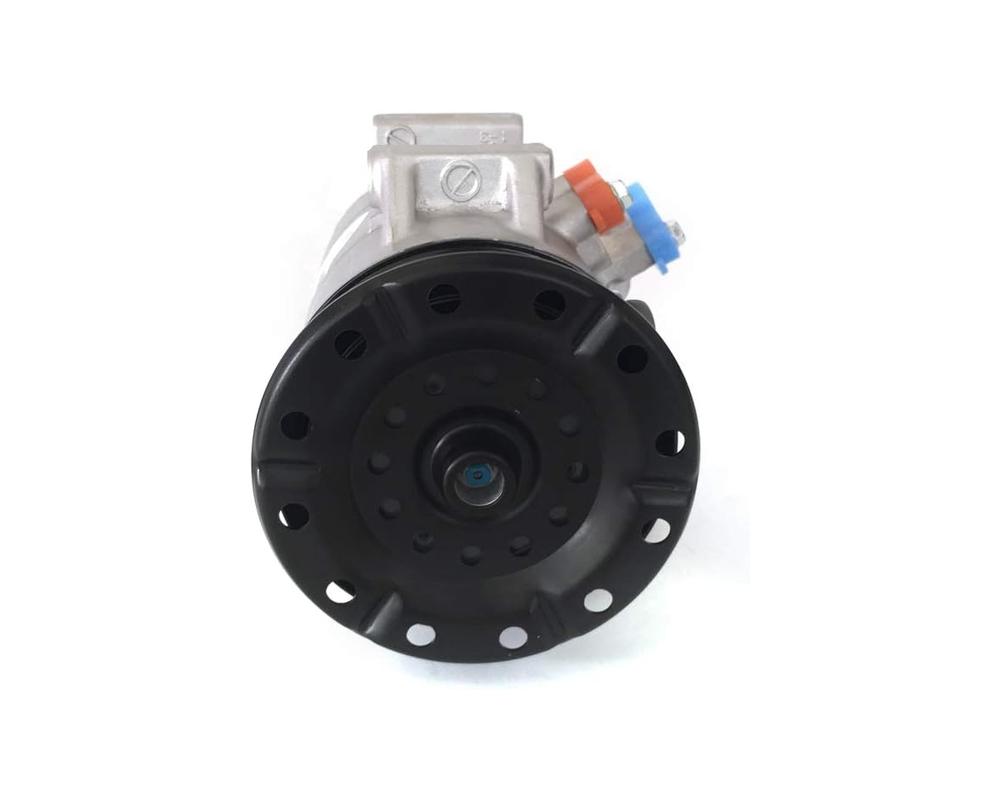

Auto Air Conditioning Compressor - 157318
Product Description
Detailed Applications
Product Specifications
OE Numbers
Documents & Support
Product Description
【Cooling function】The air-conditioning compressor can provide enough pressure to increase power and reduce engine load. It greatly improves the cooling function. It has the characteristics of high efficiency, stability, safety and reliability.
【High Quality】:100% brand new and high quality. Stable characteristics, high reliability.
【Important Note】:Before installing the air conditioning compressor pump, be sure to clean your car's cooling system pipes. If there are debris or metal fragments in the pipes, the service life of the parts may be shortened.
Detailed Applications
Make
Model
Year
TOYOTA
YARIS
2006-2012
Product Specifications
Belt Type
Serpentine
Clutch Included
Included
Coil Clock
N/A
Coil Voltage
12 2H
Connector Type
Pin
Discharge Port Type
O-Ring
ECV Harness Connector
Compressor SE10F, Vehicle SE10M
Electronic Control Valve
Yes
Groove
4
Model
5SE11C
Mount Distance
2.02 IN
Mount Distance
51.31 mm
Mount Type
Tangent Mount
Mounting Hardware?
Not Included
New or Reman
New
O-Ring A Number/Desc
24681 / Green O-Ring
O-Ring A Quantity
1
O-Ring B Number/Desc
24661 / Green O-Ring
O-Ring B Quantity
1
Oil Type
PAG 46
Part Note
May Require use of OE Manifold
Pulley Diameter
4.500 in
Pulley Diameter
114.3 mm
Refrigerant Type
R134a
Suction Port Type
O-Ring
Switch Type
N/A
Type
Nippondenso
OE Numbers
157318
158318
CO 11078RL
31723.4T1NEW
111157318
4711622
CO 11078C
CO 11078RW
140343C
447260-1178
471-0622
471-1622
