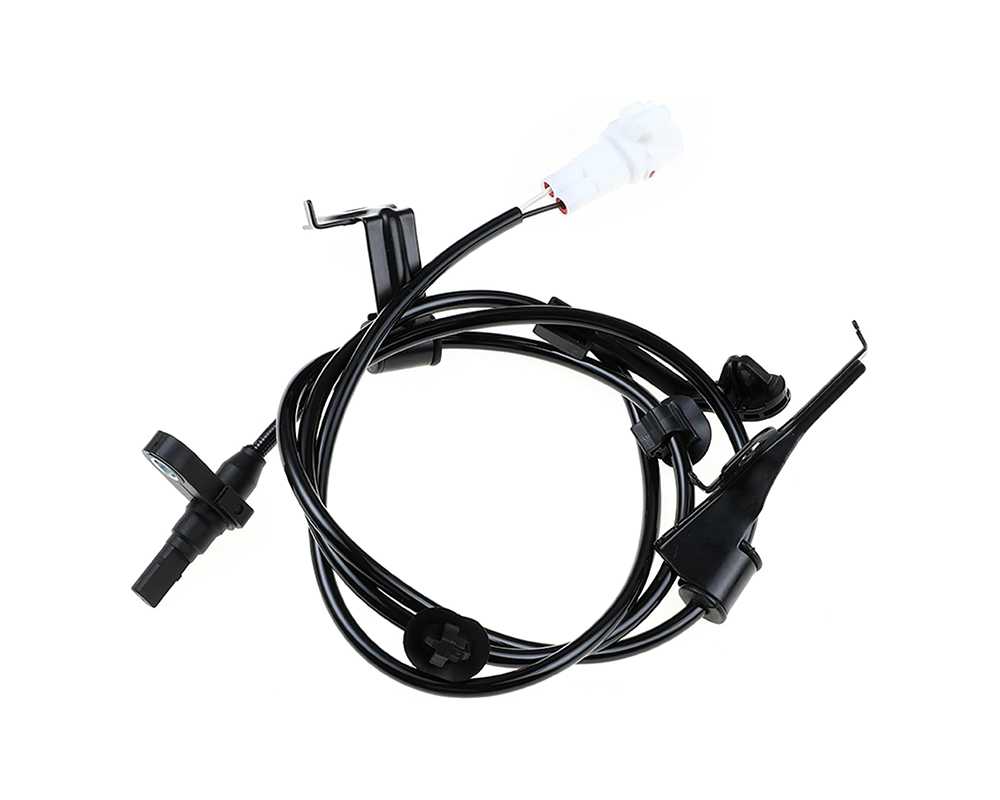

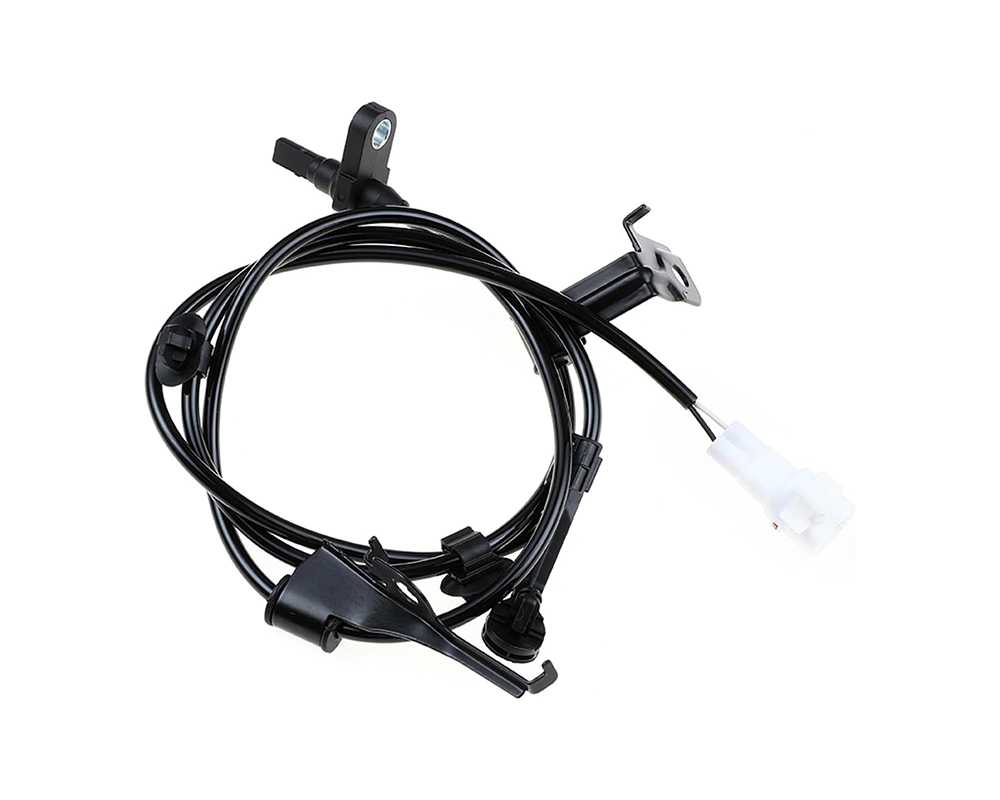

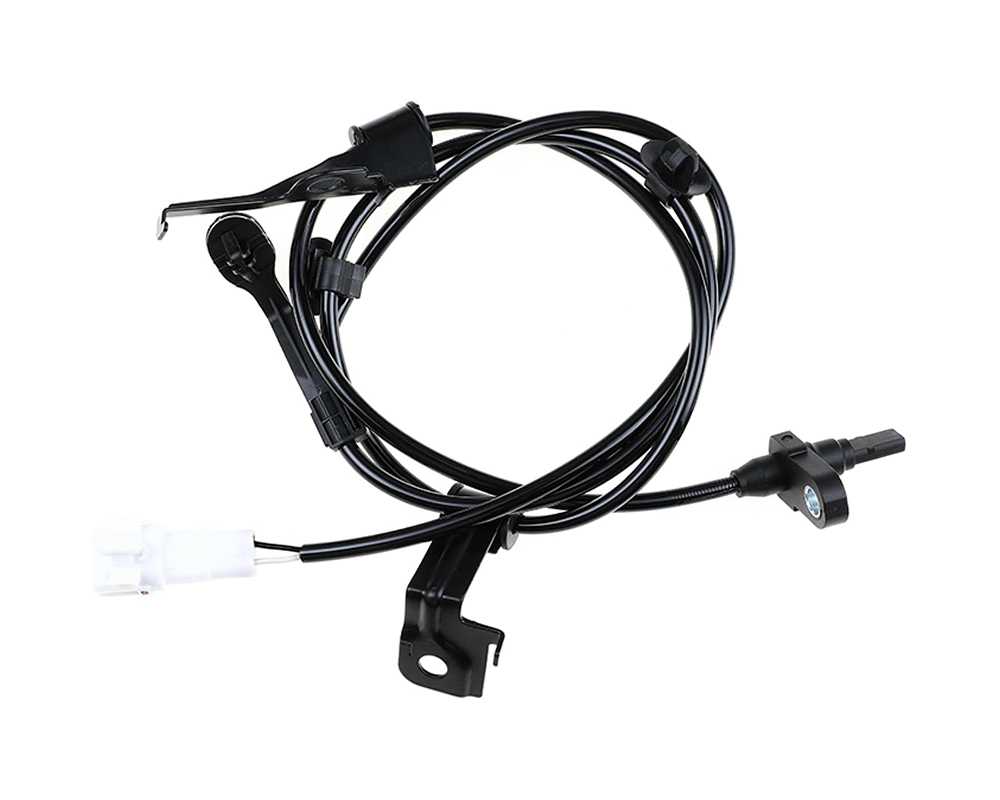

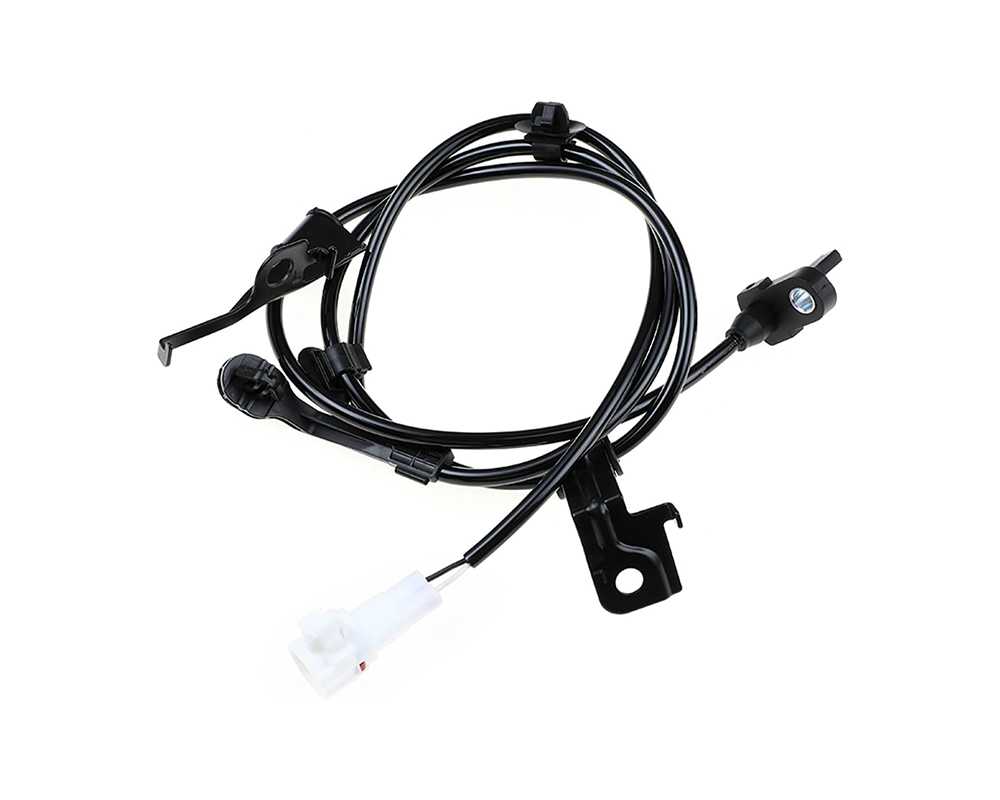

ABS Sensor - 8954352060
SQ number : 6A023108
Product Description
Detailed Applications
Product Specifications
OE Numbers
Documents & Support
Product Description
An ABS (Anti-lock Braking System) is an enhanced braking system which is commonly found in newer automobiles. An anti-lock brake sensor or ABS sensor is a type of tachometer that measures the rotational speed of a wheel and passes it to the car's Engine Control Module (ECM). The ABS sensor is also called the wheel speed sensor or ABS brake sensor. Since all the wheels do not turn at the same speed, the ABS sensors report the speeds of all the four wheels to the ECM, based on which the ECM determines if the wheels are locking up. The application of the ABS brake is quicker than manual brakes. Due to this, when the ABS is engaged, it emits a grinding noise in some automobiles.
Detailed Applications
Make
Model
Year
SCION
XD
2009-2014
TOYOTA
YARIS
2009-2011
Product Specifications
Connector Gender
Female
Connector Quantity
1
Connector Shape
Rectangular
Dust Shield Included
No
Harness Length - Inches
46
Harness Length - mm
1165
Mounting Hardware Included
No
Mounting Location
Wheel
Mounting Type
Bolt Mount
Number of Bolt Holes
3
Terminal Gender
Male
Terminal Quantity
2
Terminal Type
Blade
Wiring Harness Included
Yes
OE Numbers
8954352060
