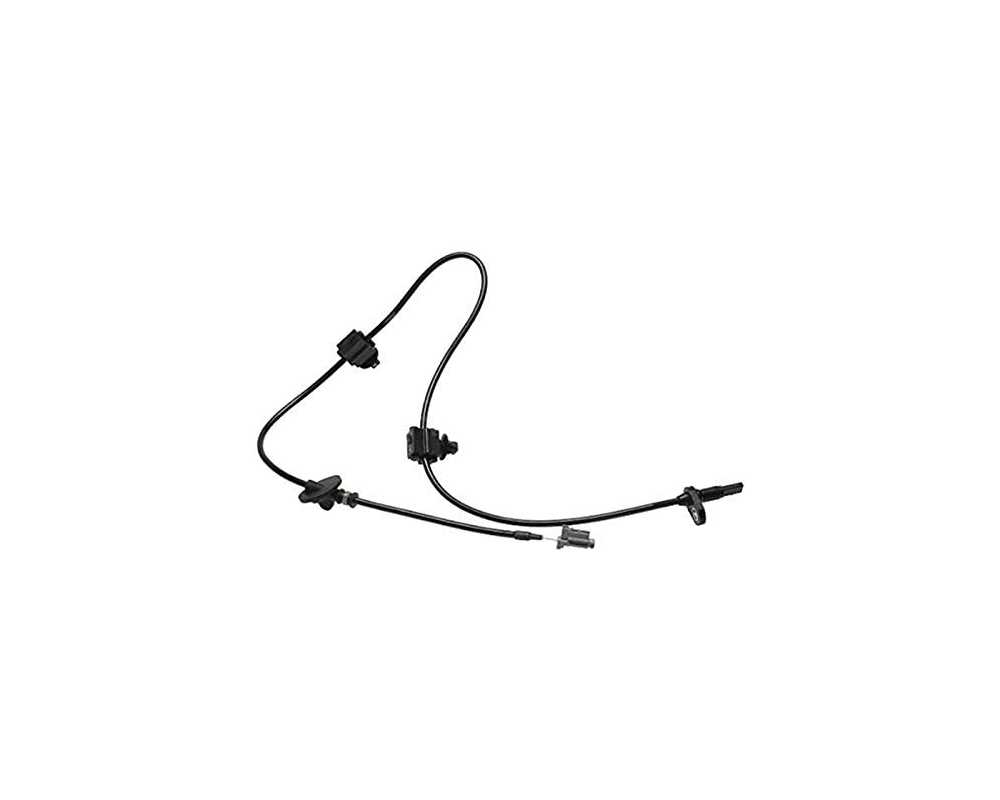

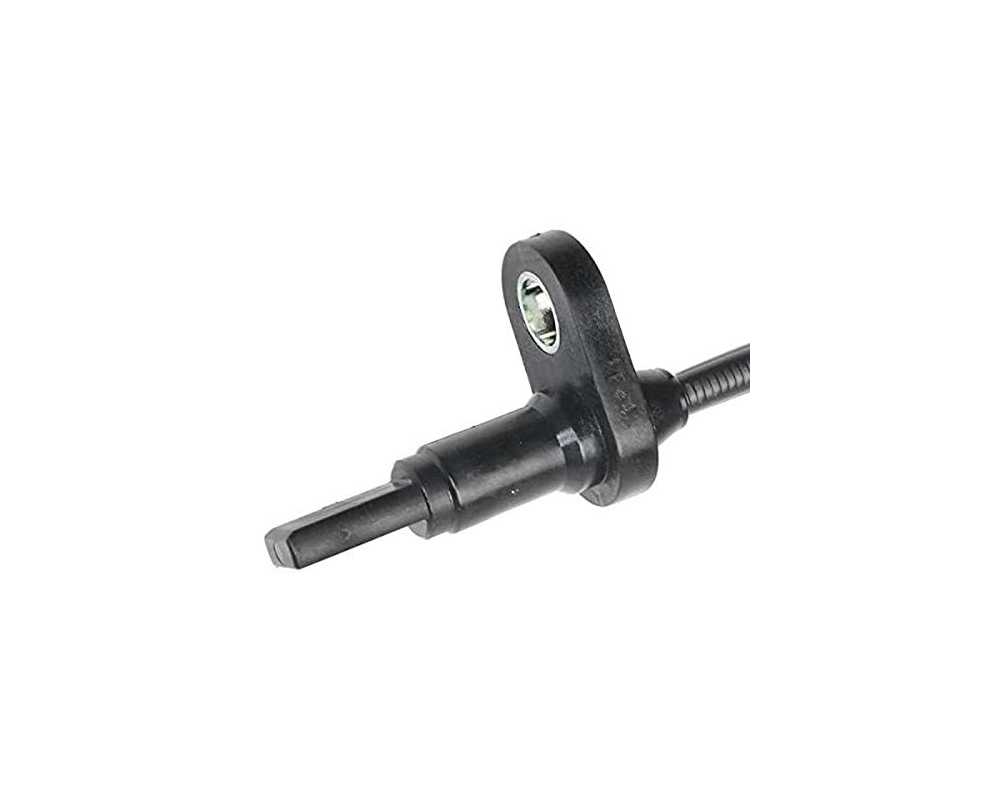

ABS Sensor - 27540XA00A
SQ number : 6A023136
Product Description
Detailed Applications
Product Specifications
OE Numbers
Documents & Support
Product Description
Features:
- Detect wheel speed.
- Helps control the braking force by transmitting real-time data to the ABS control module to prevent the wheel from locking during emergency braking.
Material:
High quality plastic and metal components ensure durability and reliability.
Installation position:
Usually installed in the brake system near the wheel.
Connection mode:
equipped with a special connector, easy to connect with the electronic system of the vehicle.
Detailed Applications
Make
Model
Year
SUBARU
B9 TRIBECA
2006-2007
SUBARU
TRIBECA
2008-2014
Product Specifications
Connector Gender
Male
Connector Quantity
1

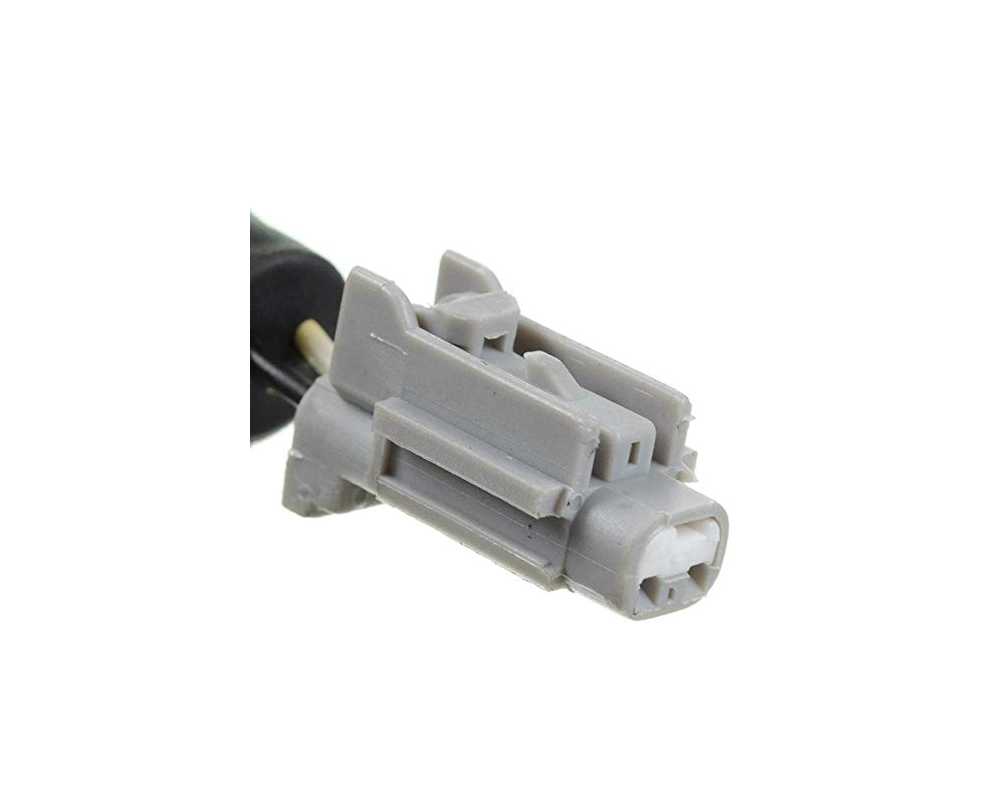

Connector Shape
Rectangular
Dust Shield Included
No
Harness Length - Inches
36
Harness Length - mm
914 MM
Mounting Hardware Included
No
Mounting Location
Spindle
Mounting Type
Bolt Mount
Number of Bolt Holes
1
Terminal Gender
Female
Terminal Quantity
2
Terminal Type
Blade
OE Numbers
27540XA00A
