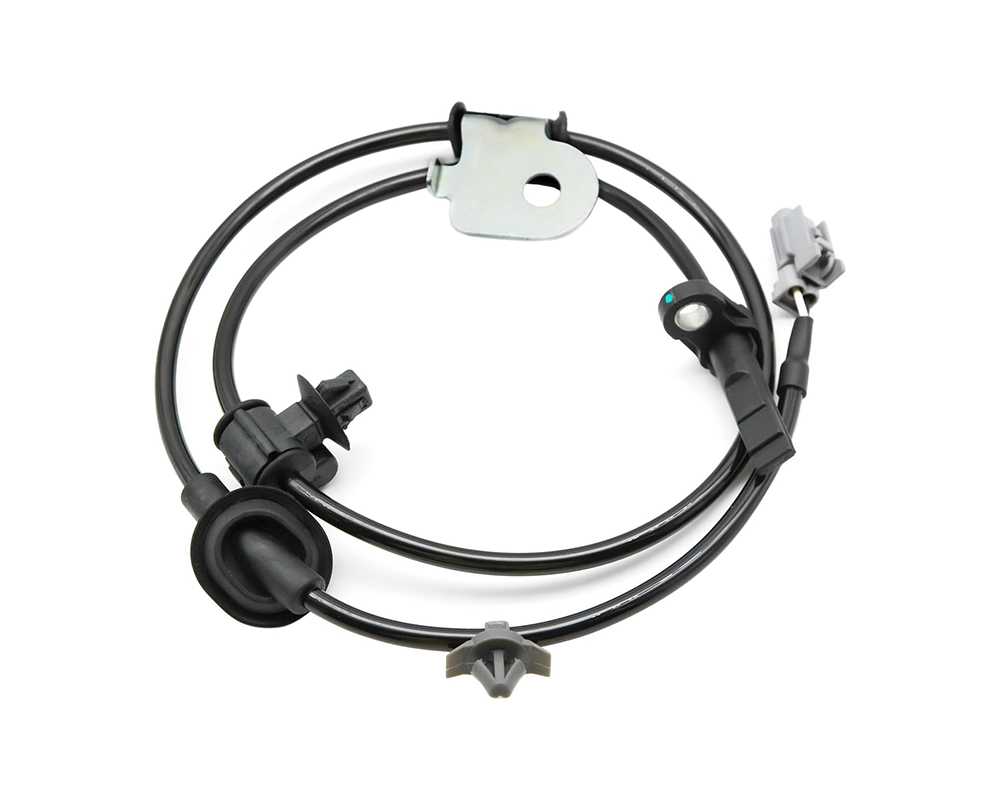

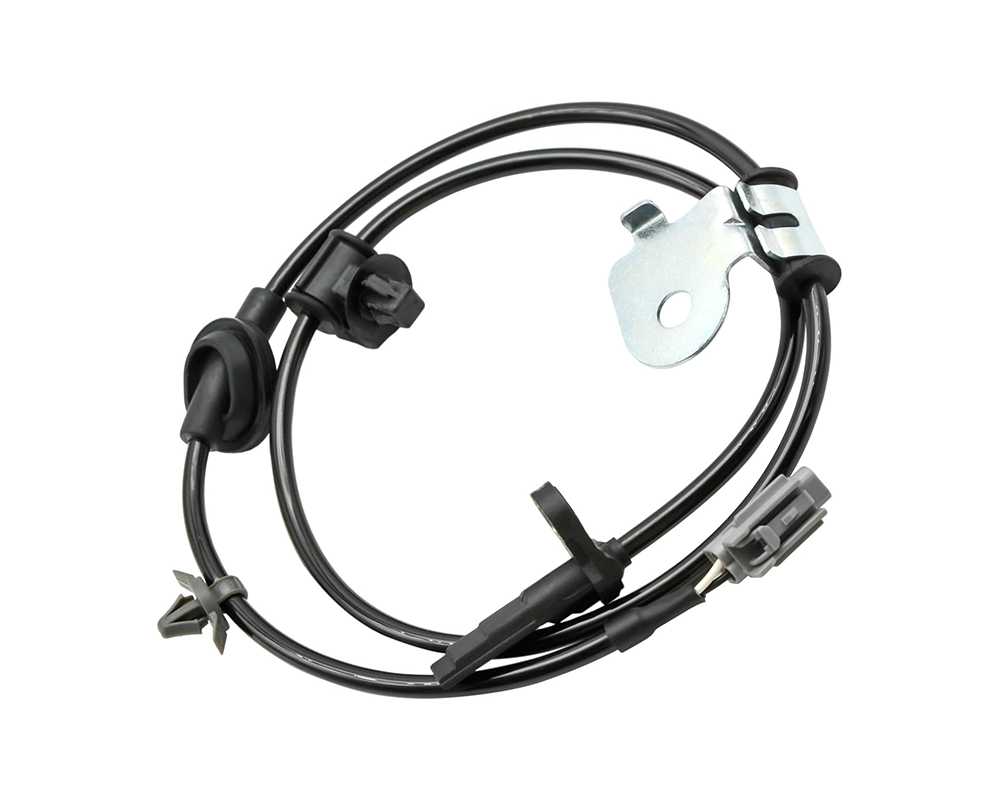

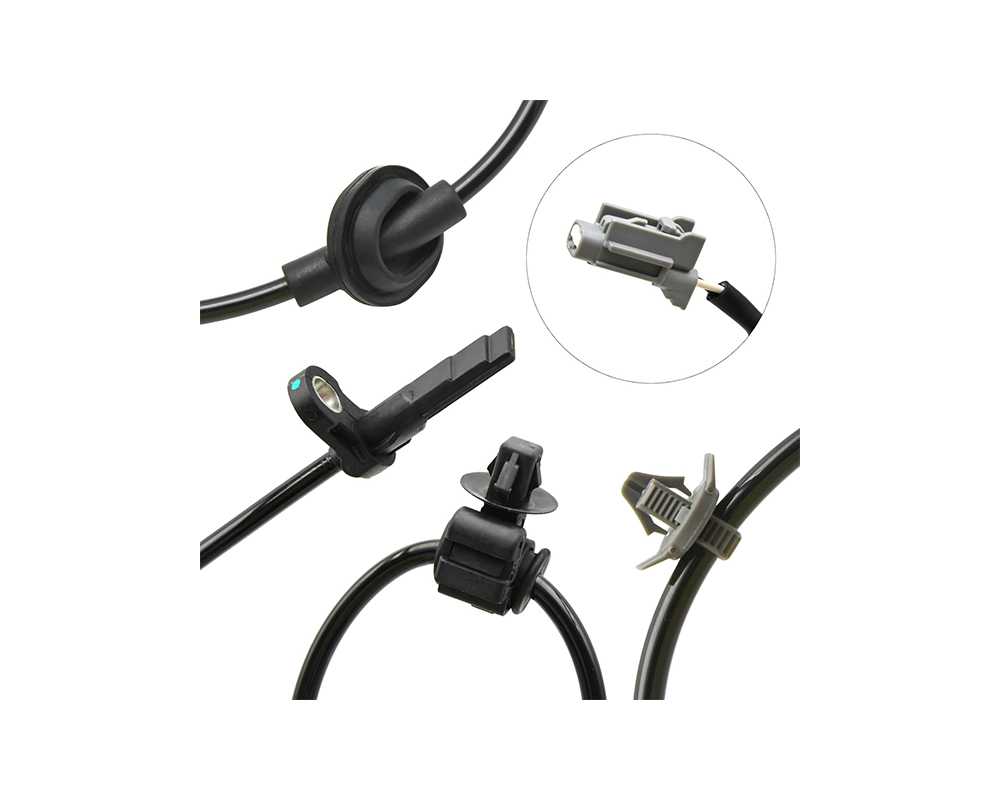

ABS Sensor - 27540FJ010
SQ number : 6A023138
Product Description
Detailed Applications
Product Specifications
OE Numbers
Documents & Support
Product Description
Main functions:
- Monitor wheel speed: This sensor is installed near the wheel and is used to monitor the rotation speed of the wheel in real time.
- Prevent wheel lock: When the sensor detects the risk of wheel lock, it sends a signal to the ABS system to trigger the adjustment of brake pressure, thereby preventing wheel lock and ensuring that the vehicle can maintain direction control during emergency braking.
Detailed Applications
Make
Model
Year
SUBARU
IMPREZA
2011-2012
SUBARU
IMPREZA R
2011-2012
SUBARU
IMPREZA SPORT
2011
SUBARU
XV CROSSTREK
2013
Product Specifications
Connector Gender
Male
Connector Quantity
1
Connector Shape
Square
Harness Length - Inches
35
Harness Length - mm
889 MM
Mounting Location
Wheel
Mounting Type
Bolt Mount
Number of Bolt Holes
2
Terminal Gender
Female
Terminal Quantity
2
Terminal Type
Blade
OE Numbers
27540FJ010
